High output Waste Paper Carton Pulp Molded Egg Tray Making Machine Price
The main sections of the production line:
1.Pulping system:including the hydrapulper,pump,disk mill (refiner),mixer,etc..to make the wastepaper into pulp.

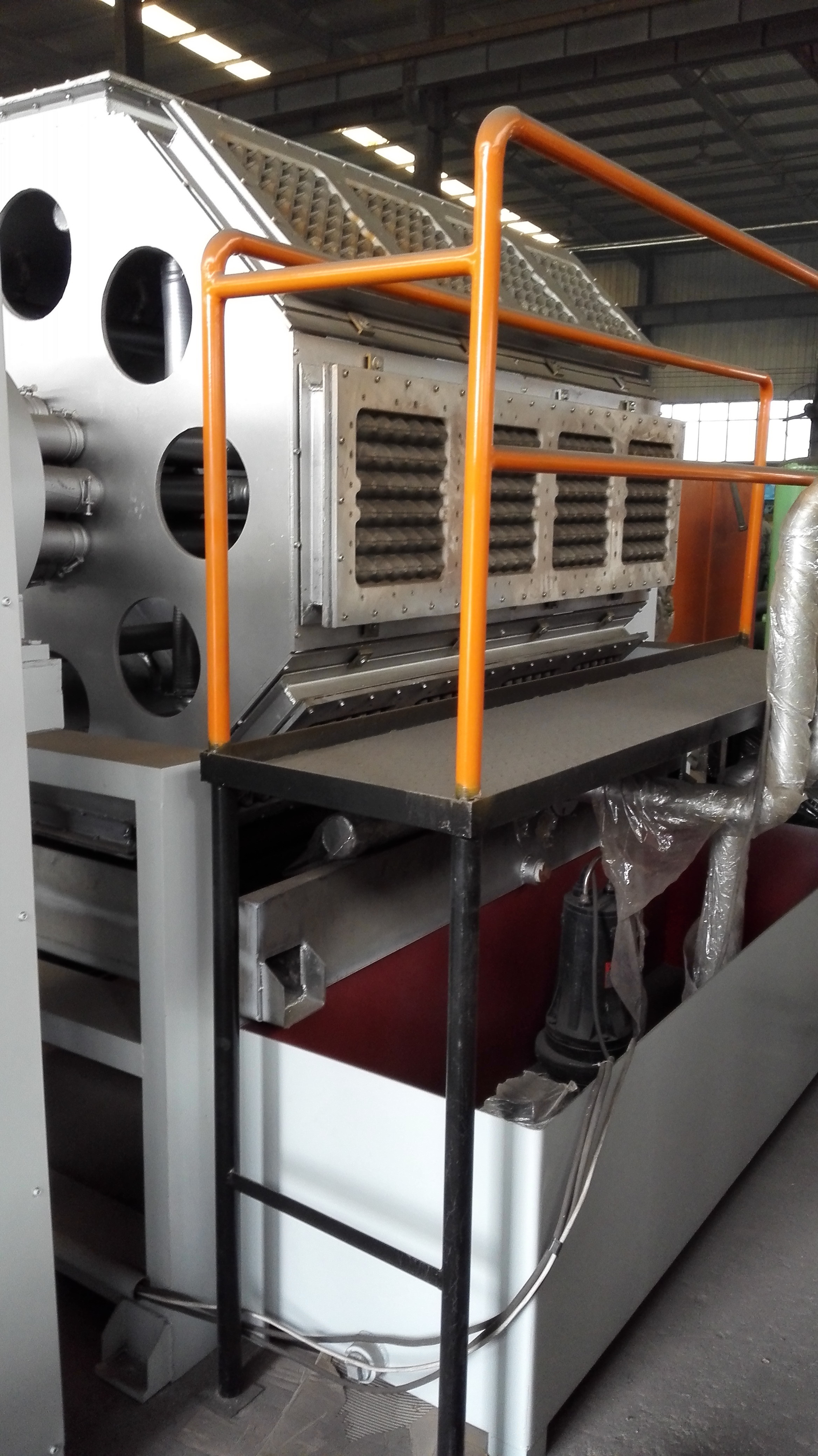

2. Forming system: including the molding machine,molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.
3. Drying system: including the oven,chains,trays,heating pipes,fans,boiler,etc..to dry the wet trays so they can be used directly.
4. Automatic Stacker:
After drying line, the egg trays go to the automatic counting and stacking system, you can preset the quantity of one pile, such as 100pcs or 200pcs. When the quantity okay, it will be alarm. The products stacked at the same time. You can packaged them directly.
Technical Sheet
| Item | Consumption/requirement | Remark |
| Electricity Power | 200kw | The burning source for the dryer boiler is selectable. Clients only need to choose one suitable for local site. |
| Waste paper | 450kg/h |
| Water | 1.35t/h |
| Natural gas/Diesel oils | 180m3/h/140kg/h around |
| Firewood | 500kg/h around |
| Workshop | 750m2(10mWidth*75mlength) |
| Machine size | 65m*10m |
| Workers Requirement | 10-12 persons |
Whatsapp&Wechat:+86 15665704183
Advantages of our machine:
1). Controlled by automatic computer soft ware
2). No need for infrastructure construction, machine can start running only after connecting some pipes, power and water, and preparing the material
3). Some parts are Germany brand or other famous brand
4). Our egg tray machine can make different trays at same time by using different moulds
5). Besides egg tray, fruit trays, our machine also can produce industrial package
6). All installation and debugging work will be done before shipment.
7). 20 years' experience on egg tray machine
8). 2 years warranty time
