Product Description:
Egg tray making machine refers to a specialized machine used to make paper egg trays. As a protective packaging that holds eggs, these trays are increasingly popular in the market.
Jinan Wanyou Packing Machinery Factory offers egg tray machines with a greater capacity and quality. With a comparatively lower cost and higher revenues, it has become an attractive opportunity for people looking to invest in this business. Especially chicken farmers, who can leverage the egg trays to package and its eggs and gain a higher price for it.
If you are considering such venture, contact us now to get more information about it!
Applications:

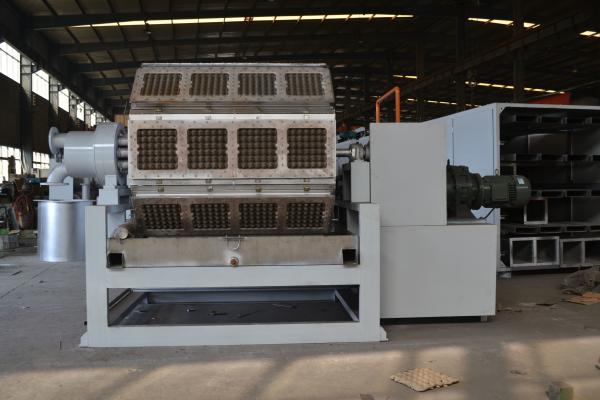

The WANYOU Egg Tray Production Line (Model Number: WY-1) is the perfect choice for those looking for a high-quality tray production equipment that is capable of producing tray products like egg cartons and egg trays with high efficiency. This tray production line is manufactured in Jinan, Shandong and is available in minimum orders of one set, with a price of 38,000 USD. The product size is 295*295mm, and it comes with plastic films for packaging. Delivery time and payment terms depend on the order. The production line has the capability of producing up to one set per month. Its forming molds are made of aluminum and ABS plastic molds, and the drying method employed is hot air drying which usually takes 20-30 minutes for completion. This egg tray production line is perfect for those looking for a reliable and efficient egg tray manufacturing plant or egg tray machine to meet their needs.
Customization:
Egg Tray Production Line
- Brand Name: WANYOU
- Model Number: WY-1
- Place of Origin: Jinan, Shandong
- Minimum Order Quantity: 1 set
- Price: 38000usd
- Packaging Details: plastic films
- Delivery Time: depends
- Payment Terms: TT
- Supply Ability: 1set/month
- Material: Waste Paper Pulp, Cardboard, Books, A4papers
- Weight: 5-15T
- Product Size: 295*295mm
- Control System: PLC
- Production Capacity: 700pcs/h--6000pcs/h
- Egg Tray Manufacturing Plant
- Egg Tray Forming Machine
- Egg Tray Production Line
| Egg Tray Mold Quantity | 2pcs | 3pcs | 4pcs | 12pcs(3pcs*4) | 16pcs(4pcs*4) | 32pcs(4pcs*8) |
| Raw material | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper |
| Egg tray Capacity(pcs/hour) | 700 | 1000 | 1300 | 2000 | 2500 | 4000 |
| Net weight per piece (gram) | 70-75 | 70-75 | 70-75 | 70-75 | 70-75 | 70-75 |
| Waste paper consumption | 0.06ton / h | 0.1ton / h | 0.13ton / h | 150kg/ h | 150kg/h | 225kg / hour |
| Water Consumption | 0.15ton/h | 0.22ton / h | 0.3ton / h | 0.45ton / h | 0.6ton/h | 0.9ton / h |
| Natural Gas Consumption of Dryer | 25cbm/h | 45cbm/h | 60cbm/h | 75cbm/h | 90cbm/h | 120cbm/h |
| Boiler model (natural gas fuel Kcal) | 300*103 | 450* | 600*103 | 800*103 | 1000*103 | 1500*103 |
| Worker requirement | 3-4workers | 4-6workers | 4-6workers | 5-7workers | 5-7workers | 8-10workers |
| Power Requirement | Without dryer | 30KW | 40KW | 45KW | 70KW | 80KW | 100KW |
| With dryer | 45KW | 60KW | 65KW | 100KW | 120KW | 150KW |
| Area of workshop | Without dryer | More than 100 M² | More than 120 M² | More than 150 M² | More than
200 M² | More than 200 M² | More than 250 M² |
| With dryer | More than 240M²
dryer-16M | More than300M²
Dryer-16M | More than 320 M²
dryer-18M | More than 400M²
Dryer18M | More than 400M²
Dryer20M | More than 520M²
Dryer32M |
| Container Requirement | Without dryer | 20ft*1 | 40ft*1 | 40ft*1 | 40ft*1 | 40ft*1 | 40ft*1 |
| With dryer | 40ft*2+20ft*1 | 40ft*3 | 40ft*3 | 40ft*4 | 40ft*4 | 40ft*5 |
| Remarks:
1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g).
2. Workshop size is for reference only and could be adjusted according to actual size of client's plant. 3. The above specification is for reference only, due to continuous technology development, data will be updated from time to time.
4. Pulp Molding Equipment are non-standard equipment, we are able to provide customized solution according to specific requirements from customer.
5. Welcome to contact us anytime, our professional team will provide more effective help and supports for you. |
Support and Services:
Egg Tray Production Line Technical Support and Service
We provide technical support and service for our Egg Tray Production Line to help keep your production line running smoothly.
Our technical support team is available to provide assistance with installation, maintenance, repair, troubleshooting, and upgrades.
We also offer online support and resources such as user manuals, product videos, and FAQs.
For more information about our Egg Tray Production Line technical support and service, please contact us.
Packing and Shipping:
Packaging and Shipping
The Egg Tray Production Line is packaged for shipping in a secure manner. Standard wooden crates are used to ensure safe transit and prevent any damage or dampness.
The crates are sealed and labelled to ensure quick and reliable delivery. The customer can expect the delivery of the Egg Tray Production Line within 3-5 business days after the order is placed.
FAQ:
Q1: What is the Brand Name of this Egg Tray Production Line?
A: The Brand Name of this Egg Tray Production Line is WANYOU.
Q2: What is the Model Number of this Egg Tray Production Line?
A: The Model Number of this Egg Tray Production Line is WY-1.
Q3: Where is the Place of Origin of this Egg Tray Production Line?
A: The Place of Origin of this Egg Tray Production Line is Jinan, Shandong.
Q4: What is the Minimum Order Quantity of this Egg Tray Production Line?
A: The Minimum Order Quantity of this Egg Tray Production Line is 1 set.
Q5: How much is the Price of this Egg Tray Production Line?
A: The Price of this Egg Tray Production Line is 38000 USD.
