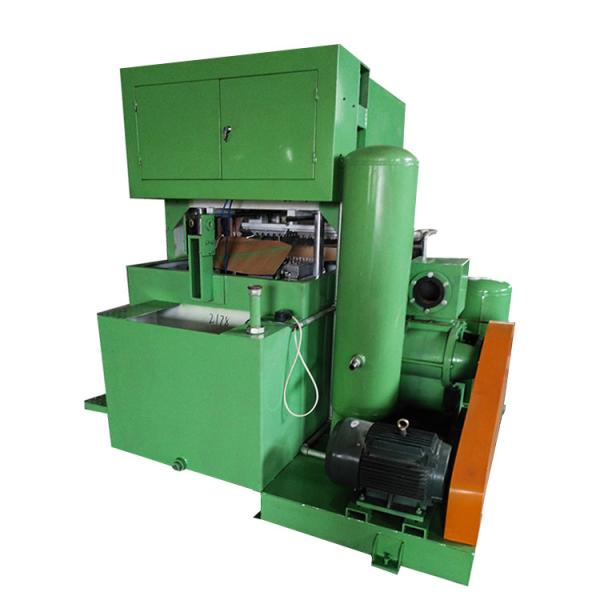

Semi Automatic Rotary Paper Egg Box Making Machine 1300pcs / Hour

Semi Automatic Rotary Paper Egg Box Making Machine 1300pcs / Hour

Rotary Paper Egg Box Making Machine Mainly used for the products with simple structure but in big quantity, paper pulp packaging,such as egg tray, egg carton,egg box,bottle tary, agricultural train seeding cup, fruit tray, cup carriers and disposable medical care products.

Technical parameters of egg dish machine:

Production Line Introduction
Pulping System
1. Put the raw material and water into the hydraulic pulper. you will get the paper pulp after mixed 10-20 minutes.
2. Pulp pump will transfer the finished paper pulp into the slurry pool.
3. The pulp pond beater will mix the pulp concentration.
4. The pulp pump will transfer the pulp into forming machine.
Molding System
1. The molding machine is to adsorb the pulp to the molding mold, adsorb the pulp to the molding mold through the suction of the vacuum system to absorb the excess water into the gas-water separation tank, and then pump the water to the tank for storage.
2. The molding mold adsorbs the pulp and then forms it. and then the transfer mold takes out the finished product and sends it to the they drying tray.
Drying System
1.Heat source: natural gas, diesel, liquefied petroleum gas and other combustion liquids and gases.The transmission mode adopts industrial transmission chain to drive the net plate transmission, which runs in the drying line.

Rotary Paper Egg Box Making Machine

1300pcs/Hour Paper Egg Box Making Machine

1300pcs/Hour rotary egg tray machine

Semi Automatic Rotary Paper Egg Box Making Machine 1300pcs / Hour Images
