Sustainable High Performance Automatic Pulp Molding Machine Paper Pulp Material Egg Tray Machine

Jinan Wanyou Packing Machinery Factory
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Sustainable High Performance Automatic Pulp Molding Machine Paper Pulp Material Egg Tray Machine

Brand Name : Wanyou

Model Number : ZSJ series

Place of Origin : Jinan, Shandong, China

MOQ : 1 set

Price : negotiation

Payment Terms : Western Union,MoneyGram,T/T,L/C

Supply Ability : 1 set per month

Delivery Time : 65 working days

Packaging Details : in container

Output for egg tray : 350pcs/h-6000pcs/h

Raw material : Waste paper

Warranty : 1 year

Egg tray size : 295mm*295mm 30eggs

Condition : New

Waste paper consumption : 25kg/h---450kg/h

Contact Now

Sustainable and High-Performance Egg Tray Production Line with Automatic Pulp Molding Machine and Paper Pulp Material Egg Tray Machine

Advantages of egg tray production line/ paper egg tray machine:

1. with computer software

2. 1-year warranty

3. fast delivery

4. Germany-made parts

Models of egg tray machine / production line:

Egg Tray Mold Quantity

2pcs

3pcs

4pcs

12pcs(3pcs*4)

Raw material

Waste paper

Waste paper

Waste paper

Waste paper

Egg tray Capacity(pcs/hour)

700

1000

1300

2000

Net weight per piece (gram)

70-75

70-75

70-75

70-75

Waste paper consumption

0.06ton / h

0.1ton / h

0.13ton / h

150kg/ h

Water Consumption

0.15ton/h

0.22ton / h

0.3ton / h

0.45ton / h

Natural Gas Consumption of Dryer

25cbm/h

45cbm/h

60cbm/h

75cbm/h

Boiler model (natural gas fuel Kcal)

300*103

450*

600*103

800*103

Worker requirement

3-4workers

4-6workers

4-6workers

5-7workers

Power Requirement

Without dryer

30KW

40KW

45KW

70KW

With dryer

45KW

60KW

65KW

100KW

Area of workshop

Without dryer

More than 100 M²

More than 120 M²

More than 150 M²

More than
200 M²

With dryer

More than 240M²
dryer-16M

More than300M²
Dryer-16M

More than 320 M²
dryer-18M

More than 400M²
Dryer18M

Container Requirement

Without dryer

20ft*1

40ft*1

40ft*1

40ft*1

With dryer

40ft*2+20ft*1

40ft*3

40ft*3

40ft*4

Remarks:
1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g).
2. Workshop size is for reference only and could be adjusted according to actual size of client's plant.
3. The above specification is for reference only, due to continuous technology development, data will be updated from time to time.
4. Pulp Molding Equipment are non-standard equipment, we are able to provide customized solution according to specific requirements from customer.
5. Welcome to contact us anytime, our professional team will provide more effective help and supports for you.

Egg tray forming machine is a kind of machine which absorbs paper pulp-the raw material, on the surface of mould by vacuum to get various shape and ratio of wet and dry by regulating time. After such working procedure as transferring moulds, releasing moulds to complete paper tray production.

Sustainable High Performance Automatic Pulp Molding Machine Paper Pulp Material Egg Tray Machine

Sustainable High Performance Automatic Pulp Molding Machine Paper Pulp Material Egg Tray Machine

Sustainable High Performance Automatic Pulp Molding Machine Paper Pulp Material Egg Tray Machine

Sustainable High Performance Automatic Pulp Molding Machine Paper Pulp Material Egg Tray Machine

The paper egg tray machine /egg tray production line is mainly combined by THREE PARTS:

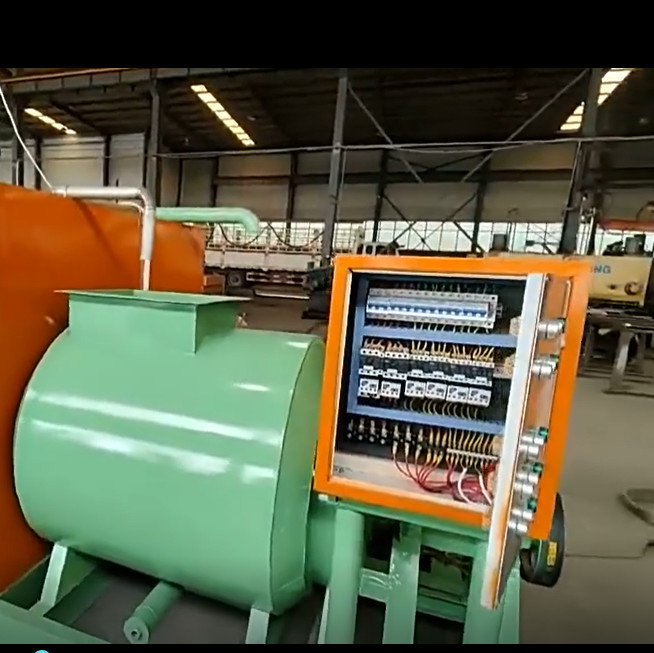

1. Pulping system

(meaning: Use waste paper and water as raw material and pulp up) ;

Sustainable High Performance Automatic Pulp Molding Machine Paper Pulp Material Egg Tray Machine

Sustainable High Performance Automatic Pulp Molding Machine Paper Pulp Material Egg Tray Machine

2. Forming system

(meaning: The pulped material being delivered to Egg tray moulds, and forming to the Egg tray plate shape) ;

Sustainable High Performance Automatic Pulp Molding Machine Paper Pulp Material Egg Tray Machine

Sustainable High Performance Automatic Pulp Molding Machine Paper Pulp Material Egg Tray Machine

Sustainable High Performance Automatic Pulp Molding Machine Paper Pulp Material Egg Tray Machine

Sustainable High Performance Automatic Pulp Molding Machine Paper Pulp Material Egg Tray Machine

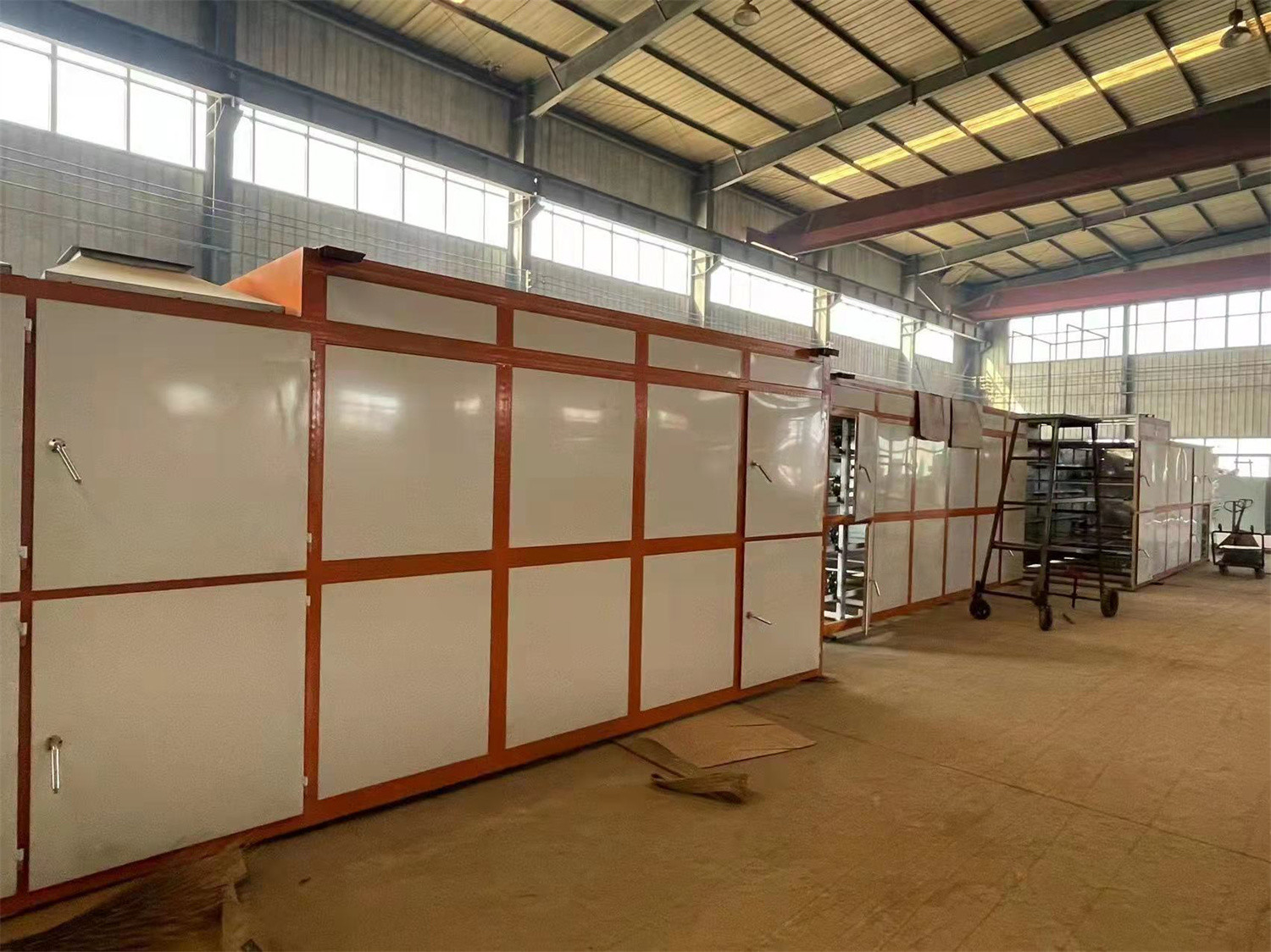

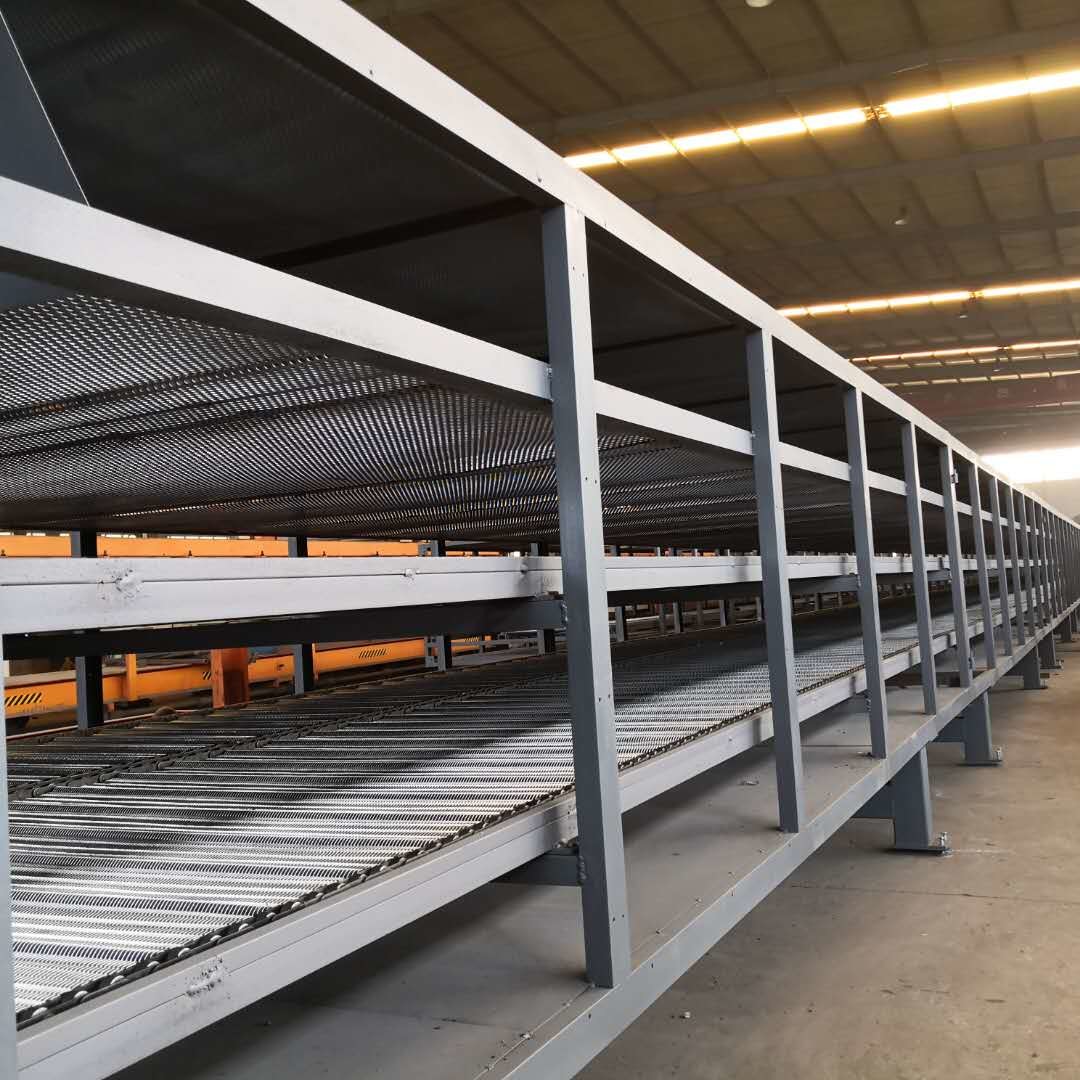

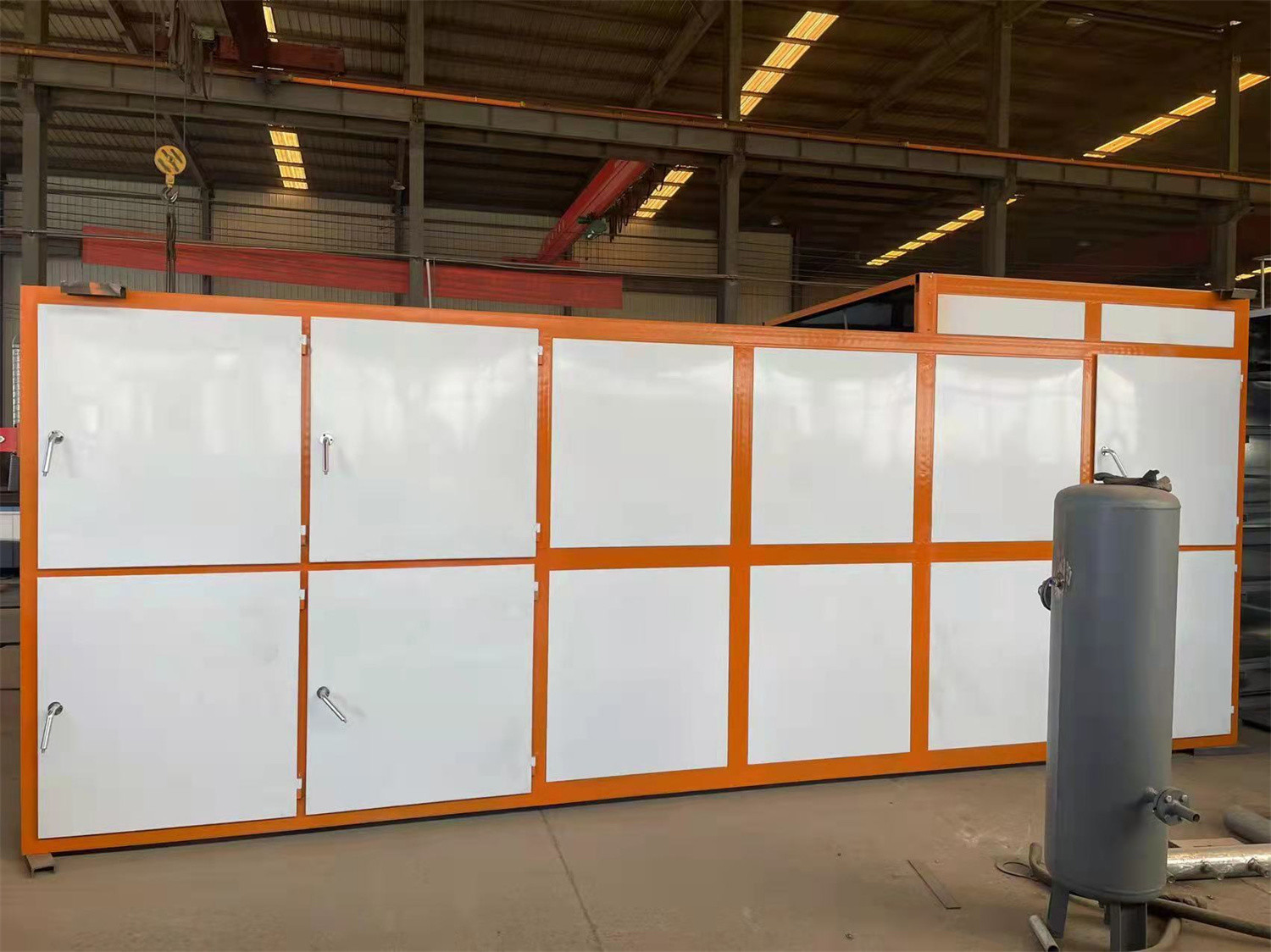

3. Drying system

(Meaning : The formed Egg tray plate being delivered to Dryer, and come up to Completed Strong Egg tray plate) .

Sustainable High Performance Automatic Pulp Molding Machine Paper Pulp Material Egg Tray Machine

Sustainable High Performance Automatic Pulp Molding Machine Paper Pulp Material Egg Tray Machine

Sustainable High Performance Automatic Pulp Molding Machine Paper Pulp Material Egg Tray Machine

Sustainable High Performance Automatic Pulp Molding Machine Paper Pulp Material Egg Tray Machine

The paper egg tray machine drying system is with one boiler. The paper egg tray machine drying system can use electricity, diesel, coal, or natural gas as energy. Customers must first confirm which kind of energy they will use before our production.

Terms of delivery
Latest date of shipment rime:15-20 working days after reciept prepayment.
Payment terms:
30% advance payment by TT, 70% before delivery the goods.Or 100% Paid by L/Cat sight against shipping documents

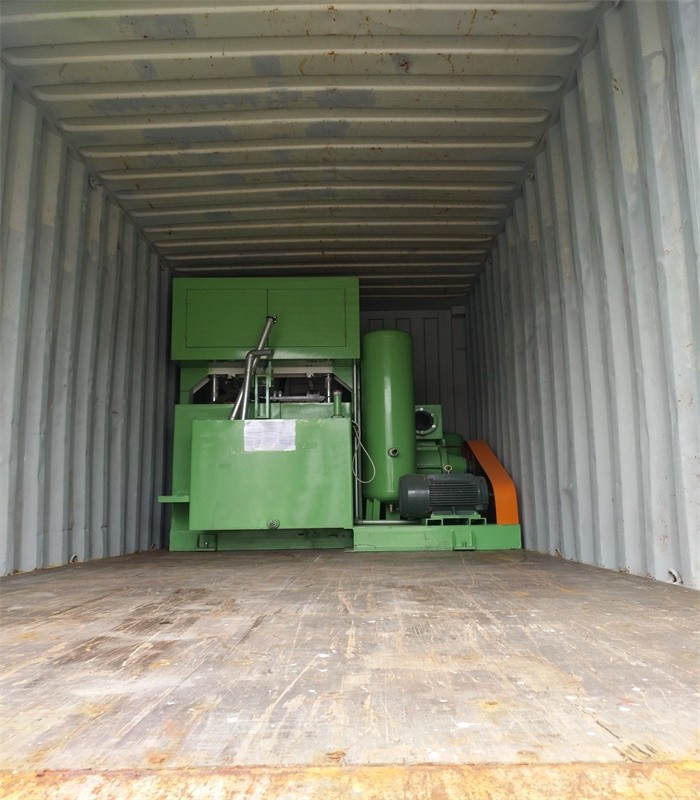

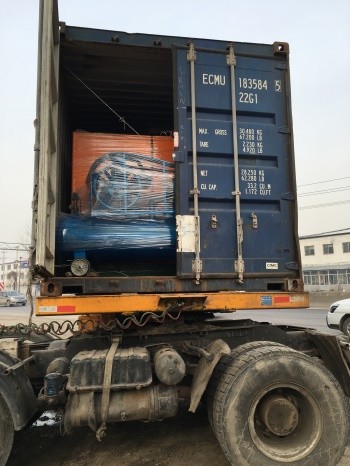

Package and Shipping

Sustainable High Performance Automatic Pulp Molding Machine Paper Pulp Material Egg Tray Machine

Sustainable High Performance Automatic Pulp Molding Machine Paper Pulp Material Egg Tray Machine

Sustainable High Performance Automatic Pulp Molding Machine Paper Pulp Material Egg Tray Machine

Sustainable High Performance Automatic Pulp Molding Machine Paper Pulp Material Egg Tray Machine

Sustainable High Performance Automatic Pulp Molding Machine Paper Pulp Material Egg Tray Machine
